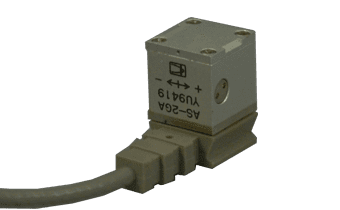

AS-GA Small-capacity Acceleration Transducer

Measurement Environment: ±20G, DC to (40 to 250Hz)
Applications: Compact and lightweight, Oil damped, removable cable

Using a strain gauge as the sensing element, AS-GA and AS-GB series acceleration transducers are designed to measure small levels of acceleration. The compact & lightweight design makes them widely used for measurement of vibration in small structures or scale models as well as in the field of human engineering.
