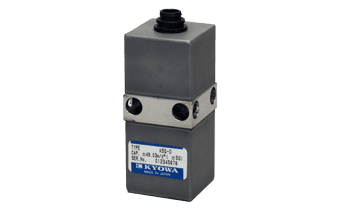

ASQ-D Servo Type Acceleration Transducer

Measurement Environment: ±5G, DC to 100Hz (200Hz on request)
Applications: Servo Accelerometer, Highly accurate.

Highly sensitive measurement of minute vibration. Most suitable for vibration measurement of vehicles, structures and the ground.

Acceleration measurement in a range of DC to 100 Hz is possible. (If desired, a model covering a range of DC to 300 Hz is available.) Compact and lightweight while ensuring high accuracy and high output.

Unlike conventional strain-gage acceleration transducers, the ASQ series acceleration transducers have a servomechanism that ensures accurate, stable and reliable measurement of minute vibration with high sensitivity. A dedicated VAQ signal conditioner is available as the mating instrument. Measuring targets include vibration generated by running vehicles, earthquake or wind in structures and the ground as well as general low-frequency vibration.​​​​​​​
