Digital panel meter MICRA – Series

The Ditel Micra series is a range of programmable digital panel meters designed for versatile industrial display and control applications. They feature multifunction measurement, programmable colour LED displays, and flexible input/output options to adapt to different process needs.

Key highlights across the Micra range include:

• Multifunction inputs: Depending on the model, Micra meters can accept process signals (voltage/current), temperature sensors (Pt100/thermocouples), load cells, or pulse/logic inputs, making them suitable for a wide variety of measurement tasks.

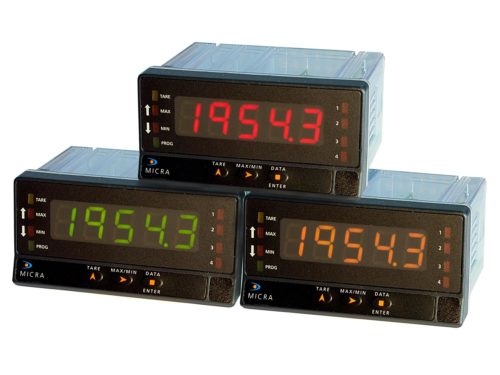

• Programmable colour displays: The instruments use a tricolour LED display (green/amber/red) that can be assigned to different states (measurement, programming, alarms) to help operators interpret readings at a glance.

• Multiple variants: The series includes the MICRA-M (general multifunction with process, temperature, and load cell inputs), MICRA-D (pulse counting, tachometer, counter/frequency modes), MICRA-E (electrical measurement for AC/DC volts and amps), and networked indicators like MICRA-X (RS485/MODBUS) and MICRA-NE (Ethernet/MODBUS TCP/IP).

• Communication & control options: Many models support communications (RS232, RS485, Ethernet) and can be expanded with analog outputs, relay or logic outputs, enabling integration into control systems and process automation.

• Extended display range: Recent firmware updates to models like the MICRA-M have expanded the display range up to ±99 999 counts, enhancing resolution and application flexibility.

Overall, the Micra series delivers configurable, multifunction panel meters suited for industrial measurement, counting, process monitoring and networked display roles where flexibility and programmability are needed.
