KFGT General-Purpose Foil Strain Gauges

Measurement Environment: Strain and Temperature

Applications: General Stress with Temperature Probe

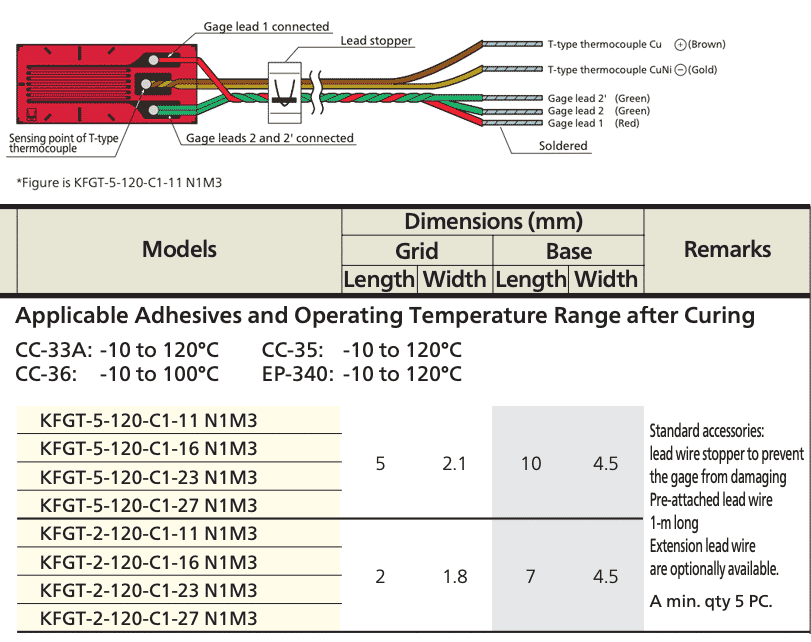

The KFGT gauges are foil strain gauges incorporating a T-type thermocouple for simultaneous measurement of strain and temperature. They ensure not only effcient strain measurement under environments where temperature change or temperature gradient requires simultaneous measurement of strain and temperature but also highly precise compensation of thermally-induced apparent strain. It is recommended to use Kyowa data logger UCAM-60B as a mating instrument.

Uniaxial 3-wire system ​​

• Polyester-coated copper lead wire 1m long each
• Resistance: 120 Ω
• Gauge factor: Approx. 2.1
• Temperature sensor: T-type thermocouple
• Accuracy: Within 1.5 °C.
