SB1S 1-Axis with 2 open collector switches

Measurement Environment: One Axis, 5VDC output, 2 open collectors
Applications: Sensor box (98 x 64 x 56mm3) with one integrated SEIKA sensor of any type, one integrated signal conditioner with 0…5V output and two open collector switch outputs that respond to traversing of adjustable thresholds.

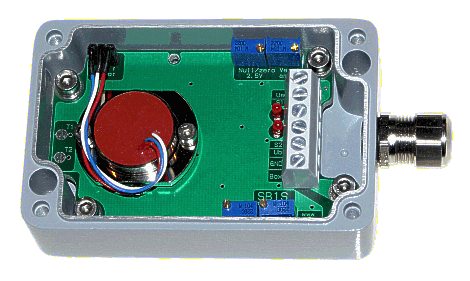

The SB1S is a pressure die cast aluminium sensor housing (IP65) with an integrated sensor for measuring uniaxial acceleration or inclination. As well as the sensor, the box contains a signal conditioner with a 0 … 5V output and a separate, highly stable supply voltage that can be used externally as a reference point.

Furthermore, the signal conditioner includes an active low pass filter, whole upper cut-off frequency / settling time can be tailored to suit the measurement task, and a noise voltage filter to guarantee the EMC. Interference signals caused by unwanted ground currents are eliminated by electrically isolating sensor and signal conditioner from the housing.
