SB1U 1-Axis with 0-5v Output

Measurement Environment: One Axis, 5VDC output
Applications: Sensor box (98 x 64 x 56mm3) with one integrated SEIKA sensor of any type and one integrated signal conditioner with 0…5V output.

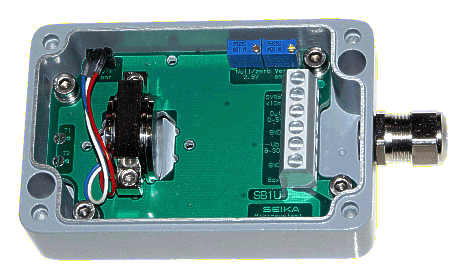

The SB1U is a pressure die cast aluminium sensor housing (IP65) with an integrated sensor for measuring uniaxial acceleration or inclination.
As well as the sensor, the box contains a signal conditioner with 0 … 5V output and a separate, highly stable supply voltage that can be used externally as a reference point.

Furthermore, the signal conditioner includes an active low pass filter, whose upper cut-off frequency / settling time can be adjusted to suit the measurement task, and a noise voltage filter to guarantee the EMC. Interference signals caused by unwanted ground currents are eliminated by electrically isolating sensor and signal conditioner from the housing.
